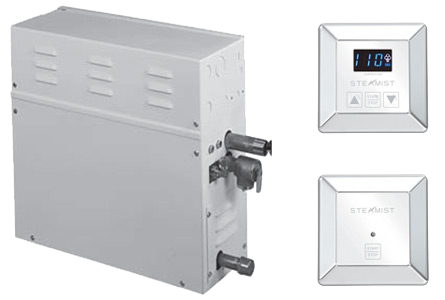

Residential Steambath Generators Steamist SM Series

Steam Shower Generator and Controls

Our most affordably priced system, the SM series steam generator provides all of steambathing's "relax, restore and renew" benefits.

The SM series is the same Steam Generator we have had for the past 15 years. It is the highest quality; durable, simple to install and easy to operate. It carries a full two year warranty on parts and labor, and beyond that a limited lifetime warranty on all parts.

The SM series is available with two controls. Each control can be used alone (inside steamroom) or in tandem for an inside/outside control system. Controls and matching steamheads are available in standard chrome or a selection of designer colors.

Optional Finishes

The SMC-150 and SMC-120 Controls and the 3199 Steamhead are available in Polished Chrome, Polished Nickel, Brushed Nickel, and Oil-Rubbed Bronze.

Sauna Craft Steambaths Specifications

Steambath Generators

Model No.	Product No.	KW Rating	Max.Cu.Ft.Range	Volts/ Phase	Min.WireSize	Max.FuseSize	ModelDimensionsL"xW"xH"
SMSERIES
SM-5	5000	5	90	240/1	10	30	15x6x15.5
SM-7	7000	7	210	240/1	8	40	15x6x15.5
SM-9	9000	9	360	240/1	8	40	15x6x15.5
SM-11	1100	11	400	240/1	6	60	17.75x7.5x15.5
SM-11	1103	11	400	208/3	8	40	17.75x7.5x15.5
SM-12	1200	12	450	240/1	6	60	17.75x7.5x15.5
SM-12	1203	12	450	208/3	8	50	17.75x7.5x15.5
SM-15	1500	15	550	240/1	4	80	17.75x7.5x15.5
SM-15	1503	15	550	208/3	6	60	17.75x7.5x15.5
TSSERIES
TSG-7	7520	7.5	250	240/1	8	40	15x6.5x15.5
TSG-10	1020	10	450	240/1	6	50	15x6.5x15.5
TSG-12	1220	12	550	240/1	4	60	17.75X7.5X15.5
TSG-15	1520	15	675	240/1	4	80	17.75X7.5X15.5

Steam Generator Sizing Guide
1. Calculate Room Size (cubic feet)
Length (feet): _______ X Width (feet): _______ X Height (feet): _______ (max. 8') =	cu/ft
2. Adjust for Construction Material (select one with the greatest heat loss)
Fiberglass, Acrylic, Cultured Marble - Multiply by 0.80	x
Corian - Multiply by 1.00	x
Ceramic Tile on Cement Board - Multiply by 1.35	x
Glass or Glass Block - Multiply by 1.35	x
Natural stone tile (i.e. marble, slate, granite)1/8"-1/2" on Cement Board-Mult by 2.0	x
3. Additional Considerations
Exterior Insulated Wall(s) - Multiply by 1.10 for each exterior wall	x
Steam Pipe Run is 15 - 25 feet - Add 20 cu. ft.	+
Cast Iron or Steel Tub - Add 30 cu. ft.	+
Skylights and outside windows must be double pane and sealed from inside the steam room - select the next size larger generator
Total Cubic Feet =	cu/ft

Example:

To determine the right size generator for a 4' x 5' x 7' room using tile over cement board with one outside wall:

Calculate the area of the room - 4' x 5' x 7' = 140 sq/ft
Ceramic Tile on Cement Board - Multiply 140 by 1.35 = 189 sq/ft
One exterior insulated wall - Multiply 189 by 1.10 = 207.90 sq/ft
Check steam bath specifications above for appropriate size steamer = SM-7 Steam Generator

Note:

For materials not listed, please call for sizing information
Commercial steam generators also available

Steam Controls & Accessories

Steam Controls & Accessories

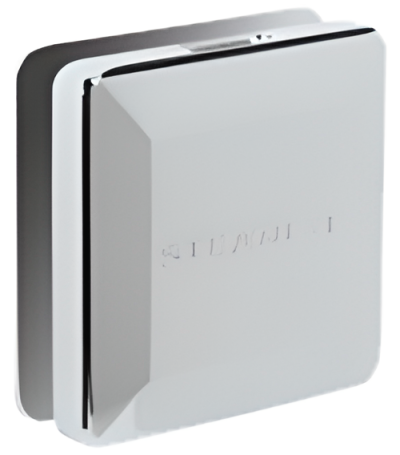

3199 Steamhead

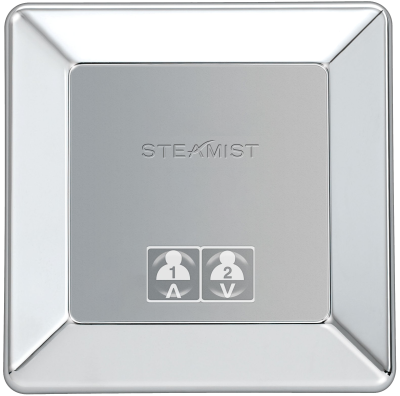

SMC-120 Control

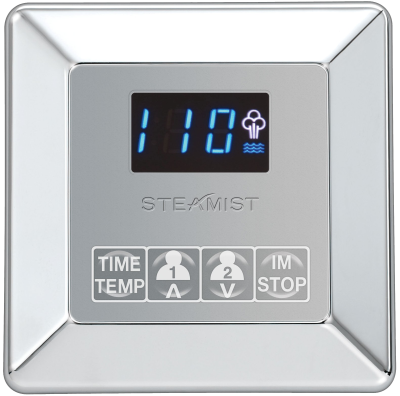

SMC-150 Control
